Aramid paper adhesive tape, replace Nomex adhesive tape F class

Product Categories

UN.Tex (Dalian) Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Model Number : Aramid adhesive tape 432

Certification : RoHS

Place of Origin : CHINA

MOQ : 500m2

Price : by quote

Payment Terms : T/T, D/P, L/C

Supply Ability : 10,000m2

Delivery Time : 30days

Packaging Details : Each column shrink packed and then in export carton. Packing quantity: m2/ctn. ctn/plt,weight: kgs,

Base material : Aramid adhesive tape

Adhesive type : Acrylic adhesive

Thickness : 0.10mm

Width : 10mm~980mm

Contact Now

Aramid paper adhesive tape, used as replacement of Nomex adhesive tape

Type No. 432

Typical properties:

Type	432
Appearance	White paper tape, smooth surface, no wrinkles, bubbles, glue particles and impurities, no glue leftover and layer transfer phenomenon when unwinding
Total thickness mm±mm	0.105±0.01
Aramid paper Thickness mm±mm	0.06±0.005
Adhesive type	Flame Retardant Acrylic Pressure Sensitive Adhesive
Breakdown voltage kV	≥1.8
Tensile strength N/10mm	≥30
Elongation at break %	≥4
Adhesion (to steel surface) N/25mm	≥12.0
Ball tack cm	≤10
Heat resistance test 155℃/45min	No tilting on tape end
Long-term temperature resistance	F class/155℃
Flame Retardant	Meet UL510 Flame Retardant
Supply size Available	in rolls, roll width 10～980mm According to user requirements, roll length 50m±0.5m

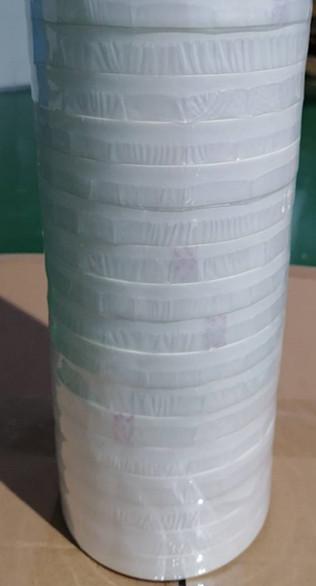

Aramid paper adhesive tape, replace Nomex adhesive tape F class Images
